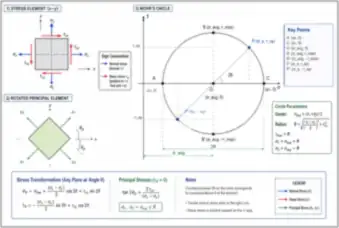

Plane Stress Example: Mohr’s Circle

σx = 80 MPa, σy = −40 MPa and τxy = 30 MPa give a center of 20 MPa, radius of 67.08 MPa, principal stresses of +87.08 MPa and −47.08 MPa and a principal angle of 13.28°.
