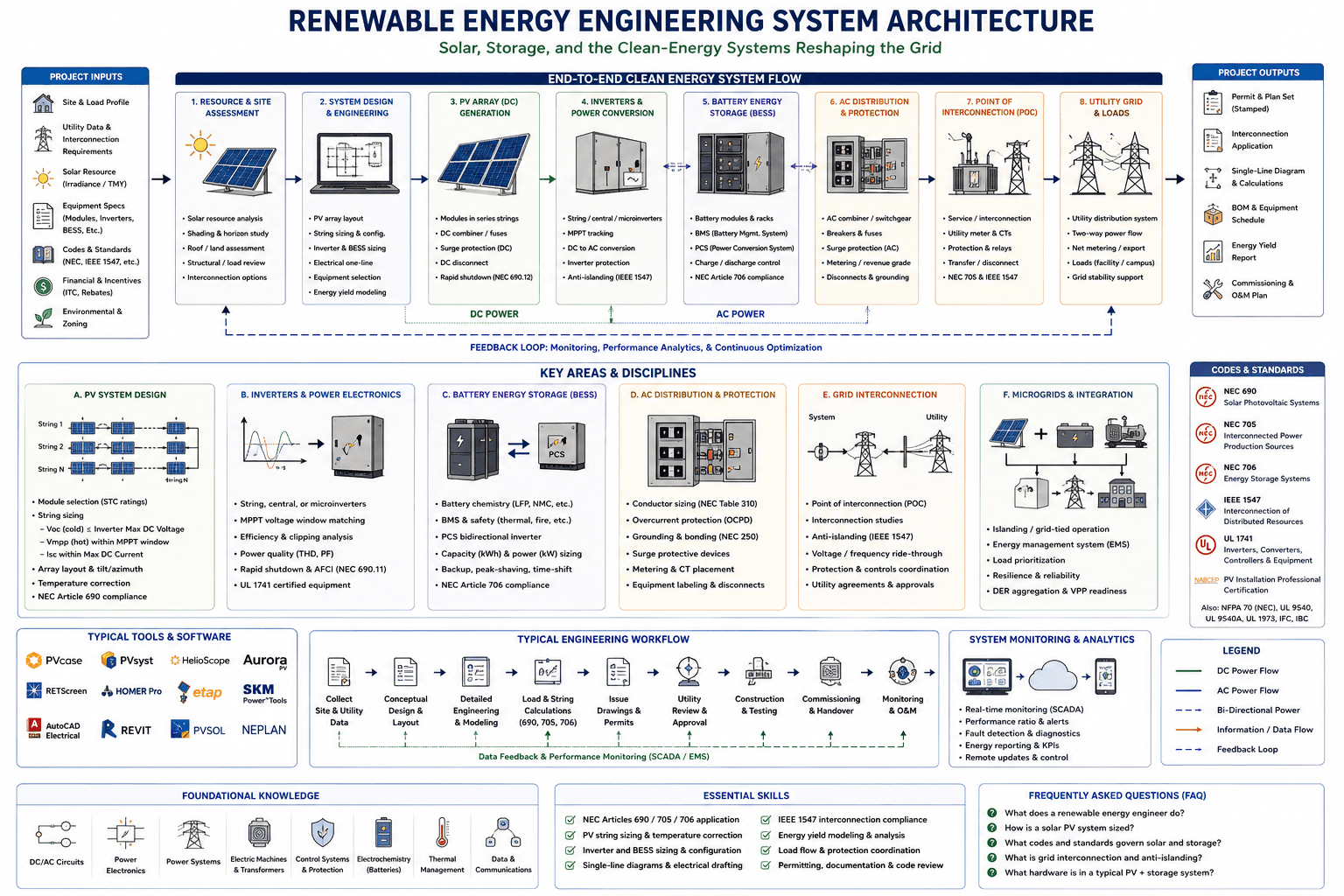

Renewable Energy Engineering System Architecture
From resource & site assessment to utility interconnection — the full 8-step project pipeline (solar PV generation, inverters, battery energy storage, AC distribution, and the point of interconnection), plus the six engineering disciplines that make it happen: PV System Design, Inverters & Power Electronics, Battery Energy Storage, AC Distribution & Protection, Grid Interconnection, and Microgrids & Integration. Hover, tap, or focus any component or connection for its description and code reference.
Hover, tap, or focus any component on the drawing (or a circuit below it) for details. Click to pin; move away or click again to clear.
Component Reference
Every component in the diagram above, grouped by section, with its role and the relevant standard.
Project Inputs
Site & Load Profile
The site address, roof or ground-mount area, and the existing or projected electrical load profile (kW demand, annual kWh). Sets the ceiling on system size and is the baseline against which solar offset, BESS peak-shaving, and EV charging demand are all sized.
Utility Data & Interconnection Requirements
The serving utility's rate tariff (TOU, demand charges, net-metering policy), service transformer size, and interconnection application requirements. Drives the 120% busbar rule sizing and determines whether a supply-side or load-side interconnection is feasible.
📘 NEC 705Solar Resource (Irradiance / TMY)
Typical Meteorological Year (TMY) irradiance data, GHI/POA solar resource, and site latitude/climate — the primary input to annual energy-yield modeling. Sourced from NREL NSRDB or PVWatts and combined with shading analysis to project production.
Equipment Specs (Modules, Inverters, BESS, Etc.)
Manufacturer datasheets for PV modules, inverters, battery racks, and balance-of-system hardware — electrical characteristics (Voc, Isc, MPPT window), mechanical dimensions, and listings (UL 1703, UL 1741, UL 9540). Feeds string sizing, inverter matching, and equipment schedules.
Codes & Standards (NEC, IEEE 1547, etc.)
The applicable edition of NEC Articles 690/705/706, IEEE 1547 interconnection requirements, and local fire/building code amendments (IFC, IBC) for the project's AHJ. Sets the compliance envelope every downstream design decision must fit inside.
📘 NFPA 70 (NEC)Financial & Incentives (ITC, Rebates)
Federal Investment Tax Credit (30% base rate), MACRS 5-year accelerated depreciation, and state or utility rebate programs available to the project. A primary driver of project economics and often the deciding factor in system sizing.
Environmental & Zoning
Local zoning ordinances, setback and height requirements, HOA restrictions, and environmental constraints (wetlands, protected species, floodplain). For ground-mount and utility-scale projects, this also covers land-use permitting and interconnection queue position.
Project Outputs
Permit & Plan Set (Stamped)
The complete permit-ready drawing set — site plan, roof/array layout, structural attachment details, and electrical one-line — stamped by a licensed PE where required. Submitted to the AHJ for plan review and building permit issuance.
📘 IBCInterconnection Application
The formal application package submitted to the utility for interconnection review — equipment specs, one-line diagram, and system size — which triggers utility engineering review and, ultimately, Permission to Operate (PTO).
📘 NEC 705Single-Line Diagram & Calculations
The electrical single-line diagram showing the full DC and AC power path from array to point of interconnection, backed by string sizing, voltage drop, conductor ampacity, and OCPD calculations required for permit review.
📘 NEC 690 / 705 / 706BOM & Equipment Schedule
The itemized bill of materials and equipment schedule — module/inverter/battery model numbers and quantities, racking, conductors, and protective devices — used for procurement, construction estimating, and commissioning verification.
Energy Yield Report
The projected annual and lifetime energy production (kWh), performance ratio, and degradation-adjusted yield, tied to the project's financial model (payback, NPV, IRR) — used for financing, PPA negotiation, and owner expectations.
Commissioning & O&M Plan
The commissioning test plan (insulation resistance, ground fault, functional/performance testing) and the ongoing operations & maintenance plan — inspection schedule, cleaning, and monitoring thresholds — handed to the owner at project turnover.
Project Workflow — 8-Step Pipeline
1. Resource & Site Assessment
Solar resource analysis, shading and horizon study, roof or land assessment, structural/load review, and a first pass at interconnection options. Establishes whether the site is feasible before detailed engineering begins.
2. System Design & Engineering
PV array layout, string sizing and configuration, inverter and BESS sizing, electrical one-line development, equipment selection, and energy yield modeling — the core detailed-design phase that turns the site assessment into a buildable design.
3. PV Array (DC) Generation
Modules wired in series strings, DC combiners and fuses, DC surge protection, DC disconnects, and PV rapid-shutdown per NEC 690.12 — the DC generation stage that produces raw solar power before conversion.
📘 NEC 6904. Inverters & Power Conversion
String, central, or microinverters performing MPPT tracking and DC-to-AC power conversion, with inverter protection and anti-islanding per IEEE 1547 — the boundary between the DC generation side and the AC distribution side.
📘 IEEE 15475. Battery Energy Storage (BESS)
Battery modules and racks, the Battery Management System (BMS), Power Conversion System (PCS), and charge/discharge control logic, installed per NEC Article 706. Bi-directionally coupled to both the DC array side and the AC distribution side.
📘 NEC 7066. AC Distribution & Protection
AC combiner panels and switchgear, breakers and fuses, AC surge protection, revenue-grade metering, and disconnects/grounding — routing converted AC power toward the point of interconnection while protecting equipment and personnel.
7. Point of Interconnection (POC)
The service/interconnection equipment, utility meter and CTs, protection relays, and transfer/disconnect means required by NEC 705 and IEEE 1547 — the formal electrical and contractual boundary between the customer's system and the utility grid.
📘 NEC 705 / IEEE 15478. Utility Grid & Loads
The utility distribution system and the facility/campus loads it serves — supporting two-way power flow, net metering/export, and grid-stability services from the interconnected renewable energy system. The end point of the pipeline and the start of ongoing grid interaction.
DC Power Flow Zone
The DC power flow bracket spanning system design through PV generation to the inverter input — every conductor and protective device in this zone must be sized and rated for DC arc-fault and voltage characteristics per NEC 690.
📘 NEC 690AC Power Flow Zone
The AC power flow bracket spanning the battery PCS output through AC distribution and protection — power in this zone is 60 Hz AC, protected and metered per NEC 705/706 and utility interconnection requirements.
📘 NEC 705 / 706Data Feedback & Performance Monitoring Loop
The continuous data-feedback loop — SCADA/EMS telemetry from load calculations through commissioning and O&M — that closes the loop between as-built performance and the engineering assumptions made earlier in the pipeline, enabling continuous optimization.
Codes & Standards Referenced
NEC 690 — Solar Photovoltaic Systems
NFPA 70 (NEC) Article 690 governs the design and installation of solar photovoltaic power systems — maximum voltage and current calculations, disconnect requirements, rapid shutdown, and PV system grounding.
📘 NEC 690NEC 705 — Interconnected Power Production Sources
NFPA 70 (NEC) Article 705 governs interconnected electric power production sources — the 120% busbar rule for load-side interconnection, source interconnection point requirements, and disconnecting means.
📘 NEC 705NEC 706 — Energy Storage Systems
NFPA 70 (NEC) Article 706 governs the installation of energy storage systems — disconnecting means, fire-mitigation requirements, and coordination with NFPA 855 spacing and ventilation rules for battery installations.
📘 NEC 706IEEE 1547 — Interconnection of Distributed Resources
IEEE 1547 defines the technical requirements for interconnecting distributed energy resources with electric power systems — voltage/frequency ride-through, anti-islanding, and grid-support functions required of modern inverters.
📘 IEEE 1547UL 1741 — Inverters, Converters, Controllers & Equipment
UL 1741 is the product safety standard for inverters, converters, and controllers used in distributed energy resource systems, including the Supplement SA anti-islanding and grid-support test requirements that align with IEEE 1547.
📘 UL 1741NABCEP — PV Installation Professional Certification
The North American Board of Certified Energy Practitioners (NABCEP) PV Installation Professional certification — the industry-recognized credential for solar PV design and installation competency, often required by AHJs or incentive programs.
Also: NFPA 70, UL 9540, UL 9540A, UL 1973, IFC, IBC
NFPA 70 (the NEC itself), UL 9540 (Energy Storage Systems and Equipment), UL 9540A (thermal-runaway fire-propagation test method), UL 1973 (battery cell/module safety), the International Fire Code (IFC), and the International Building Code (IBC) — the broader set of codes and listings that govern BESS fire safety, structural attachment, and occupancy.
📘 UL 9540 / 9540A / 1973 · IFC · IBCKey Areas & Disciplines
A. PV System Design
Module selection (STC ratings), string sizing — Voc(cold) ≤ inverter max DC voltage, Vmpp(hot) within the MPPT window, Isc within max DC current — array layout and tilt/azimuth optimization, temperature correction, and NEC Article 690 compliance. The foundational discipline that determines how much DC power the array can safely produce.
📘 NEC 690B. Inverters & Power Electronics
String, central, or microinverter topology selection, MPPT voltage window matching, efficiency and clipping analysis, power quality (THD, PF), rapid shutdown and AFCI per NEC 690.11, and UL 1741-certified equipment — the discipline that converts DC generation into usable, grid-compliant AC power.
📘 UL 1741C. Battery Energy Storage (BESS)
Battery chemistry selection (LFP, NMC, etc.), BMS and safety systems (thermal, fire), the bidirectional PCS inverter, capacity (kWh) and power (kW) sizing, use-case strategy — backup, peak-shaving, time-shift — and NEC Article 706 compliance. The discipline that determines how energy is stored, protected, and dispatched.
📘 NEC 706D. AC Distribution & Protection
Conductor sizing per NEC Table 310, overcurrent protection (OCPD) coordination, grounding and bonding per NEC Article 250, surge protective devices, metering and CT placement, and equipment labeling/disconnects — the discipline that safely routes and protects converted AC power downstream.
📘 NEC 250E. Grid Interconnection
Point of interconnection (POC) design, interconnection studies, anti-islanding per IEEE 1547, voltage/frequency ride-through requirements, protection & controls coordination with the utility, and utility agreements & approvals — the discipline that governs how the system interacts electrically and contractually with the grid.
📘 IEEE 1547 / NEC 705F. Microgrids & Integration
Islanding / grid-tied operation modes, the Energy Management System (EMS) that orchestrates PV, storage, and gensets, load prioritization for critical circuits, resilience & reliability planning, and DER aggregation / Virtual Power Plant (VPP) readiness — the discipline that ties multiple DERs into one coordinated, resilient system.
📘 IEEE 1547Typical Tools & Software
PVcase
CAD-integrated software for utility-scale and commercial PV layout design, terrain analysis, and shading optimization directly on GIS/CAD site data.
PVsyst
The industry-standard tool for detailed PV system simulation — shading, losses, and energy yield modeling used to produce bankable production estimates.
HelioScope
Web-based solar design software combining 3D shading analysis with fast layout iteration and proposal-ready production estimates, popular for commercial rooftop design.
Aurora Solar
Remote solar design software using LiDAR/satellite imagery for shading and layout, widely used by residential and commercial installers for design-to-proposal workflows.
RETScreen
Natural Resources Canada's feasibility and performance analysis software for renewable energy and energy-efficiency projects — used for early-stage screening and financial viability.
HOMER Pro
Techno-economic optimization software for microgrids and hybrid renewable systems — sizes PV, battery, and generator combinations against a load profile to find least-cost configurations.
ETAP
Power system analysis software for load flow, short-circuit, arc-flash, and protection coordination studies — used for utility-interconnection and AC distribution engineering on larger renewable projects.
SKM Power*Tools
Electrical engineering software suite for power system modeling, protective device coordination, and arc-flash analysis on commercial and industrial electrical distribution.
AutoCAD Electrical
CAD software specialized for electrical control systems and schematic design — used to produce single-line diagrams, panel schedules, and electrical construction drawings.
REVIT
Building Information Modeling (BIM) software used to coordinate PV, BESS, and electrical routing within the broader architectural/structural/MEP building model — increasingly common on commercial and institutional projects.
PVSOL
3D solar PV planning software combining detailed shading simulation, financial analysis, and system design for residential and commercial installations.
NEPLAN
Power system analysis software for grid planning, load flow, and stability studies — used to evaluate DER interconnection impact on distribution networks.
Typical Engineering Workflow
1. Collect Site & Utility Data
Gathering site survey data, load history, and utility interconnection requirements — the intake step that feeds every downstream engineering task.
2. Conceptual Design & Layout
Producing a first-pass array layout, equipment placement, and rough system sizing to confirm feasibility before investing in detailed engineering.
3. Detailed Engineering & Modeling
Detailed string sizing, energy-yield modeling in PVsyst/HelioScope, and electrical one-line development that turns the concept into a buildable design.
4. Load & String Calculations (690, 705, 706)
The formal NEC 690/705/706 calculations — string voltage/current, interconnection current limit, and BESS disconnect sizing — that back the stamped design.
📘 NEC 690 / 705 / 7065. Issue Drawings & Permits
Finalizing and stamping the drawing set, then submitting it to the local Authority Having Jurisdiction (AHJ) for building and electrical permit review.
6. Utility Review & Approval
The utility's engineering review of the interconnection application — impact studies where required — culminating in conditional approval to proceed to construction.
7. Construction & Testing
Physical installation of racking, modules, inverters, and BESS, followed by pre-energization testing — insulation resistance, ground fault, and continuity checks.
8. Commissioning & Handover
Functional and performance commissioning testing, utility witness testing where required, receipt of Permission to Operate (PTO), and handover of documentation to the owner.
9. Monitoring & O&M
Ongoing SCADA/EMS performance monitoring, preventive maintenance, and fault response over the system's operating life — the step that feeds the data-feedback loop back into future design decisions.
System Monitoring & Analytics
Real-time monitoring (SCADA), performance ratio & alerts, fault detection & diagnostics, energy reporting & KPIs, and remote updates & control — delivered from on-site monitors through cloud analytics to mobile apps. Closes the loop between as-built performance and the engineering assumptions made earlier in the pipeline.
Foundational Knowledge
DC/AC Circuits
Ohm's law, series and parallel circuit analysis, and AC fundamentals (RMS, phase, power factor) — the electrical-engineering bedrock underneath every calculation in solar, storage, and grid-interconnection design.
Power Electronics
Switching power converter theory, MPPT algorithms, and inverter topology — the discipline that explains how PV DC power is converted into grid-compliant AC.
Power Systems
Load flow, short-circuit analysis, and grid stability fundamentals — the knowledge base for interconnection studies and utility-scale integration.
Electric Machines & Transformers
Transformer sizing and impedance, plus generator and motor fundamentals — relevant to service transformers, step-up transformers on utility-scale projects, and backup generator integration.
Control Systems & Protection
Protective relay logic and coordination principles — the basis for overcurrent protection, anti-islanding, and fault-clearing schemes throughout the system.
Electrochemistry (Batteries)
Battery cell electrochemistry — LFP vs. NMC chemistry tradeoffs, degradation mechanisms, and thermal behavior — that underpins BESS sizing, cycle-aging estimates, and safety design.
Thermal Management
Heat-transfer fundamentals applied to inverter derating, battery-rack thermal design, and HVAC sizing for enclosed BESS containers.
Data & Communications
SCADA/Modbus communication protocols and networking fundamentals that tie inverters, BMS, and monitoring platforms together into one coherent data system.
Reference
Essential Skills
NEC Articles 690/705/706 application, PV string sizing & temperature correction, inverter and BESS sizing & configuration, single-line diagrams & electrical drafting, IEEE 1547 interconnection compliance, energy yield modeling & analysis, load flow & protection coordination, and permitting/documentation & code review — the core competency checklist for this discipline.
📘 NEC 690 / 705 / 706 · IEEE 1547Frequently Asked Questions
What does a renewable energy engineer do? How is a solar PV system sized? What codes and standards govern solar and storage? What is grid interconnection and anti-islanding? What hardware is in a typical PV + storage system? — the questions newcomers to the field ask most often.
Connections & Flows
The power, data, and feedback flow types that tie the diagram together — each shown as a colored line in the legend above.
DC Power Flow
Direct-current power flowing from the PV array through combiners, DC disconnects, and rapid-shutdown devices to the inverter input. Sized and protected per NEC 690 for DC arc-fault characteristics.
📘 NEC 690AC Power Flow
Alternating-current power flowing from the inverter/PCS output through AC distribution, protection, and metering to the point of interconnection and, ultimately, the utility grid and site loads.
📘 NEC 705 / 706Bi-Directional Power
Power that can flow in either direction — between the BESS and the rest of the system during charge/discharge cycles, and between the site and the utility grid during net-metering export or import.
📘 NEC 706 / IEEE 1547Information / Data Flow
Digital communication — SCADA telemetry, Modbus/BMS data, and monitoring-platform traffic — that carries status, setpoints, and performance data between equipment, the EMS, and cloud/mobile monitoring.
📘 Modbus / SCADAFeedback Loop
The performance-monitoring feedback loop — SCADA/EMS data collected during operations feeding back into load calculations, commissioning verification, and future design decisions across the engineering pipeline.
